AJAX Pagination with Search and Sort in ASP.NET MVC 5

Date Posted: December 22, 2016, 2:37 pm

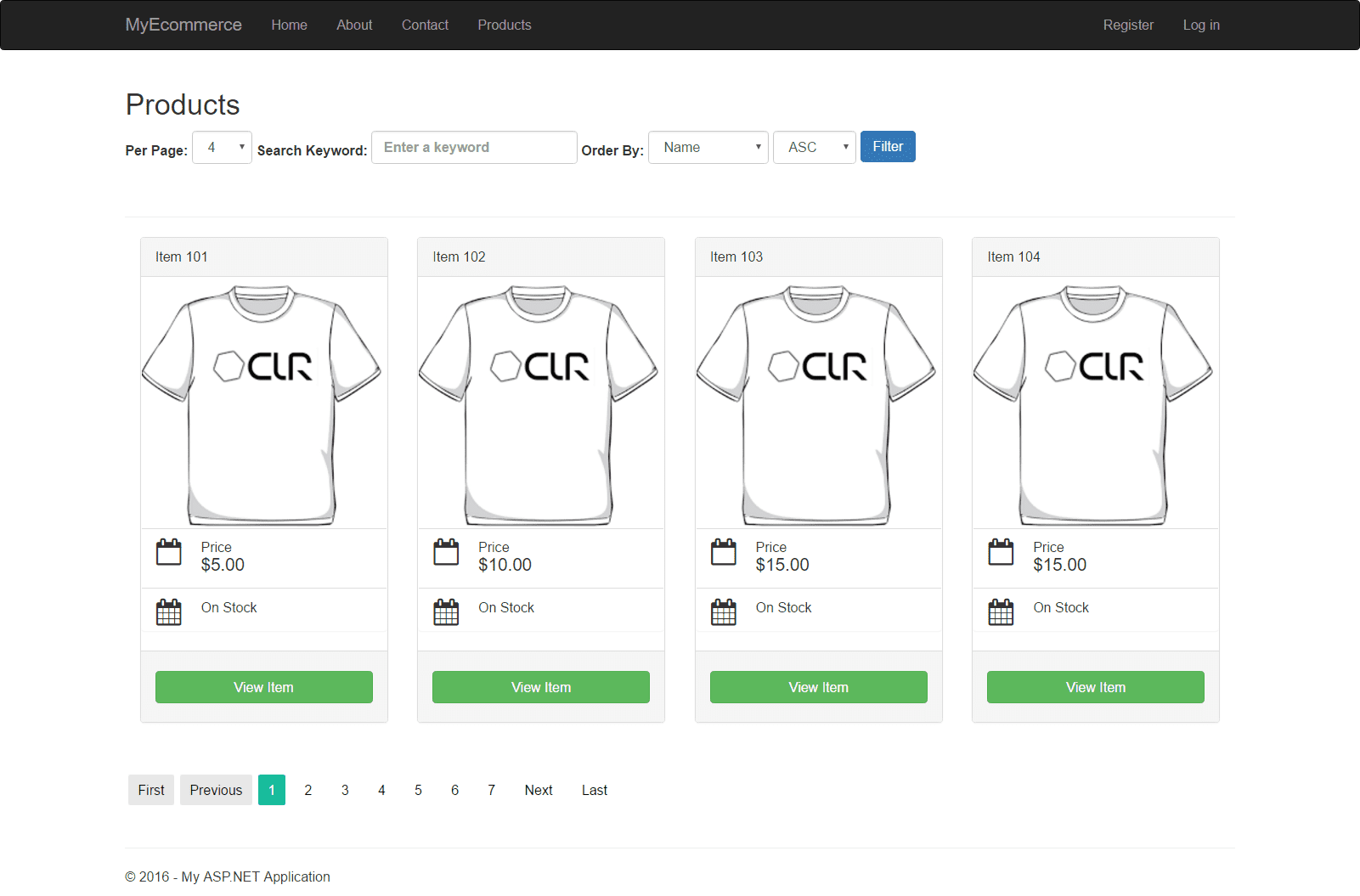

In this tutorial, we are going to build a simple AJAX Pagination with search and sort using Entity Framework with ASP.NET MVC. This tutorial assumes that you already have an existing ASP.NET MVC web application built using Visual Studio 2013 or 2015. What you see in the above picture is exactly what we are going to build out. So let’s get started.

In Visual Studio, create a new Model class under your Models folder and name it ProductModel.cs. In it add the following code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
using System;
using System.Collections.Generic;
using System.Data.Entity;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MyAppName.Models
{
    public class Product
    {
        public int id { get; set; }
        public string name { get; set; }
        [AllowHtml]
        public string content { get; set; }
        public string excerpt { get; set; }
        public DateTime? date { get; set; }
        public decimal price { get; set; }
        public int quantity { get; set; }
        public int status { get; set; }
        public int author { get; set; }
        public string images { get; set; }
        public string featured_image { get; set; }
    }

    public class ProductDBContext : DbContext
    {
        public DbSet<Product> Products { get; set; }
    }
}

From the Solution Explorer of Visual Studio, right click on the Models Folder -> Add -> New Scaffolded Item

A new window will pop-up, select MVC 5 Controller with views, using Entity Framework then click Add.

On the next window: Under Model class select Product(MyAppName.Models), for the Data context class select ProductDBContext (MyAppName.Models). If you have an existing razor layout, you can use it as the new view for our Products scaffold. Click the Add button when you’re done. This will start generating the necessary views and controller for our Products.

We can now start working on the pagination.

Navigate to View -> Products -> Index.cshtml then replace the Index() method with the following:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
[HttpGet]
public ActionResult Index()
{
    /* No logic required here, let's just render the view */
    return View();
}

[HttpPost]
public string Index(FormCollection collection)
{
    /* Setup default variables that we are going to populate later */
    var pag_content = "";
    var pag_navigation = "";

    /* Define all posted data coming from the view. */
    int page = Convert.ToInt32(collection["data[page]"]); /* Page we are currently at */
    string sort = collection["data[sort]"] == "ASC" ? "asc" : "desc"; /* Order of our sort (DESC or ASC) */
    string name = collection["data[name]"]; /* Name of the column name we want to sort */
    int max = Convert.ToInt32(collection["data[max]"]); /* Number of items to display per page */
    string search = collection["data[search]"]; /* Keyword provided on our search box */

    int cur_page = page;
    page -= 1;
    int per_page = max > 1 ? max : 16;
    bool previous_btn = true;
    bool next_btn = true;
    bool first_btn = true;
    bool last_btn = true;
    int start = page * per_page;

    /* Let's build the query using available data that we received form the front-end via ajax */
    var all_items_query = db.Products
        .Where(x => x.id != 0)
        .OrderBy(name + " " + sort)
        .Skip(start)
        .Take(per_page); /* Get only the products to display. */

    /* Get total items in our database */
    var count_query = db.Products
        .Where(x => x.id != 0); /* Get total products count. */

    /* If there is a search keyword, we search through the database for possible matches*/
    if (search != "")
    {
        /* The "Contains" method matches records using the LIKE %keyword% format */
        all_items_query = all_items_query.Where(x =>
            x.name.Contains(search) ||
            x.content.Contains(search) ||
            x.excerpt.Contains(search)
        );
        count_query = count_query.Where(x =>
            x.name.Contains(search) ||
            x.content.Contains(search) ||
            x.excerpt.Contains(search)
        );
    }

    /* We now fetch the data from our database */
    var all_items = all_items_query.ToList();
    int count = count_query.Count();

    if (count > 0)
    {
        /* Loop through each item to create views */
        foreach (var item in all_items)
        {
            pag_content += "<div class='col-sm-3 item-" + item.id + "'>" +
                "<div class='panel panel-default'>" +
                    "<div class='panel-heading item-name'>" +
                        item.name +
                    "</div>" +
                    "<div class='panel -body p-0 p-b'>" +
                        "<a href='/Products/Details/" + item.id + "'><img src='/Content/Images/" + "dummy-shirt.png" + "' width='100%' class='img-responsive item-featured' /></a>" +
                        "<div class='list-group m-0'>" +
                            "<div class='list-group-item b-0 b-t'>" +
                                "<i class='fa fa-calendar-o fa-2x pull-left ml-r'></i>" +
                                "<p class='list-group-item-text'>Price</p>" +
                                "<h4 class='list-group-item-heading'>$<span class='item-price'>" + item.price + "</span></h4>" +
                            "</div>" +
                            "<div class='list-group-item b-0 b-t'>" +
                                       "<i class='fa fa-calendar fa-2x pull-left ml-r'></i>" +
                                "<p class='list-group-item-text'>On Stock</p>" +
                                "<h4 class='list-group-item-heading item-stock'>" + "" + "</h4>" +
                            "</div>" +
                        "</div>" +
                    "</div>" +
                    "<div class='panel-footer'>" +
                        "</p><a href='/Products/Details/" + item.id + "' class='btn btn-success btn-block'>View Item</a></p>" +
                     "</div>" +
                "</div>" +
            "</div>";
        }
    }
    else
    {
        /* Show a message if no items were found */
        pag_content += "<p class='p-d bg-danger'>No items found</p>";
    }

    pag_content = pag_content + "<br class = 'clear' />";

    /* Bellow is the navigation logic and view */
    decimal nop_ceil = Decimal.Divide(count, per_page);
    int no_of_paginations = Convert.ToInt32(Math.Ceiling(nop_ceil));

    var start_loop = 1;
    var end_loop = no_of_paginations;

    if (cur_page >= 7)
    {
        start_loop = cur_page - 3;
        if (no_of_paginations > cur_page + 3)
        {
            end_loop = cur_page + 3;
        }
        else if (cur_page <= no_of_paginations && cur_page > no_of_paginations - 6)
        {
            start_loop = no_of_paginations - 6;
            end_loop = no_of_paginations;
        }
    }
    else
    {
        if (no_of_paginations > 7)
        {
            end_loop = 7;
        }
    }

    pag_navigation += "<ul>";

    if (first_btn && cur_page > 1)
    {
        pag_navigation += "<li p='1' class='active'>First</li>";
    }
    else if (first_btn)
    {
        pag_navigation += "<li p='1' class='inactive'>First</li>";
    }

    if (previous_btn && cur_page > 1)
    {
        var pre = cur_page - 1;
        pag_navigation += "<li p='" + pre + "' class='active'>Previous</li>";
    }
    else if (previous_btn)
    {
        pag_navigation += "<li class='inactive'>Previous</li>";
    }

    for (int i = start_loop; i <= end_loop; i++)
    {

        if (cur_page == i)
            pag_navigation += "<li p='" + i + "' class = 'selected' >" + i + "</li>";
        else
            pag_navigation += "<li p='" + i + "' class='active'>" + i + "</li>";
    }

    if (next_btn && cur_page < no_of_paginations)
    {
        var nex = cur_page + 1;
        pag_navigation += "<li p='" + nex + "' class='active'>Next</li>";
    }
    else if (next_btn)
    {
        pag_navigation += "<li class='inactive'>Next</li>";
    }

    if (last_btn && cur_page < no_of_paginations)
    {
        pag_navigation += "<li p='" + no_of_paginations + "' class='active'>Last</li>";
    }
    else if (last_btn)
    {
        pag_navigation += "<li p='" + no_of_paginations + "' class='inactive'>Last</li>";
    }

    pag_navigation = pag_navigation + "</ul>";

    /* Lets put our variables in a dictionary */
    var response = new Dictionary<string, string> {
        { "content", pag_content },
        { "navigation", pag_navigation }
    };

    /* Then we return the Dictionary in json format to our front-end */
    string json = new JavaScriptSerializer().Serialize(response);
    return json;
}

Go to Solution Explorer then create a file under Scripts directory, name it App.js. In it, put the following code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
/**
 * App Class
 *
 * @author      Carl Victor Fontanos
 * @author_url  www.carlofontanos.com
 *
 */


/**
 * Setup a App namespace to prevent JS conflicts.
 */

var app = {

    Posts: function () {

        /**
         * This method contains the list of functions that needs to be loaded
         * when the "Posts" object is instantiated.
         *
         */

        this.init = function () {
            this.get_all_items_pagination();
        }

        /**
         * Load front-end items pagination.
         */

        this.get_all_items_pagination = function () {

            _this = this;

            /* Check if our hidden form input is not empty, meaning it's not the first time viewing the page. */
            if ($('form.post-list input').val()) {
                /* Submit hidden form input value to load previous page number */
                data = JSON.parse($('form.post-list input').val());
                _this.ajax_get_all_items_pagination(data.page, data.name, data.sort);
            } else {
                /* Load first page */
                _this.ajax_get_all_items_pagination(1, $('.post_name').val(), $('.post_sort').val());
            }

            /* Search */
            $('body').on('click', '.post_search_submit', function () {
                _this.ajax_get_all_items_pagination(1, $('.post_name').val(), $('.post_sort').val());
            });
            /* Search when Enter Key is triggered */
            $(".post_search_text").keyup(function (e) {
                if (e.keyCode == 13) {
                    _this.ajax_get_all_items_pagination(1, $('.post_name').val(), $('.post_sort').val());
                }
            });

            /* Pagination Clicks   */
            $('body').on('click', '.pagination-nav li.active', function () {
                var page = $(this).attr('p');
                _this.ajax_get_all_items_pagination(page, $('.post_name').val(), $('.post_sort').val());
            });
        }

        /**
         * AJAX front-end items pagination.
         */

        this.ajax_get_all_items_pagination = function (page, order_by_name, order_by_sort) {

            if ($(".pagination-container").length > 0 && $('.products-view-all').length > 0) {
                $(".pagination-container").html('<img src="/Content/Images/loading.gif" class="ml-tb" />');

                var post_data = {
                    page: page,
                    search: $('.post_search_text').val(),
                    name: order_by_name,
                    sort: order_by_sort,
                    max: $('.post_max').val(),
                };

                $('form.post-list input').val(JSON.stringify(post_data));

                var data = {
                    action: 'get-all-products',
                    data: JSON.parse($('form.post-list input').val())
                };

                $.ajax({
                    url: '/Products/Index',
                    type: 'POST',
                    data: data,
                    success: function (response) {
                        response = JSON.parse(response);

                        if ($(".pagination-container").html(response.content)) {
                            $('.pagination-nav').html(response.navigation);
                            $('.table-post-list th').each(function () {
                                /* Append the button indicator */
                                $(this).find('span.glyphicon').remove();
                                if ($(this).hasClass('active')) {
                                    if (JSON.parse($('form.post-list input').val()).th_sort == 'DESC') {
                                        $(this).append(' <span class="glyphicon glyphicon-chevron-down pull-right"></span>');
                                    } else {
                                        $(this).append(' <span class="glyphicon glyphicon-chevron-up pull-right"></span>');
                                    }
                                }
                            });
                        }
                    }
                });
            }
        }
    }
}

/**
 * When the document has been loaded...
 *
 */

jQuery(document).ready(function () {

    posts = new app.Posts(); /* Instantiate the Posts Class */
    posts.init(); /* Load Posts class methods */

});

Then go to your Views -> Products -> Index.cshtml then replace everything with the following code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
@model IEnumerable<MyAppName.Models.Product>

@{
    ViewBag.Title = "Index";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h2>Products</h2>

<div class="products-view-all">
    <form class="post-list">
        <input type="hidden" value="">
    </form>
    <div class="clearfix">
        <article class="navbar-form navbar-left p-0 m-0 ml-b">
            <div class="form-group">
                <label>Per Page: </label>
                <select class="form-control post_max m-b">
                    <option value="4">4</option>
                    <option value="8">8</option>
                    <option value="16">16</option>
                </select>
            </div>
            <label>
                Search Keyword:
                <input type="text" placeholder="Enter a keyword" class="form-control post_search_text m-b">
            </label>
            <div class="form-group">
                <label>Order By: </label>
                <select class="form-control post_name m-b">
                    <option value="name">Name</option>
                    <option value="price">Price</option>
                    <option value="date">Date Posted</option>
                </select>
                <select class="form-control post_sort m-b">
                    <option value="ASC">ASC</option>
                    <option value="DESC">DESC</option>
                </select>
            </div>
            <input type="submit" value="Filter" class="btn btn-primary post_search_submit m-b">
        </article>
    </div>
    <hr>
    <div class="clearfix">
        <div class="pagination-container clearfix"><br class="clear"></div>
        <div class="pagination-nav"></div>
    </div>
</div>

Finally, let’s add some CSS styling to our Pagination navigation, simply drop off the following code into your Site.css:

1
2
3
4
5
6
7
/* Pagination Styles */
.pagination-nav { margin: 30px 0 20px 0; }
.pagination-nav ul {margin: 0; padding: 0;}
.pagination-nav ul li {display: inline-block; margin: 3px; padding: 6px 10px; background: #FFF; color: black; border-radius: 2px; }
.pagination-nav ul li.active:hover {cursor: pointer; background: #18bc9c; color: white; }
.pagination-nav ul li.inactive {background: #e8e8e8;}
.pagination-nav ul li.selected {background: #18bc9c; color: white;}

Now add a few items and see our AJAX Pagination with search and sort in action!

About author


Carl Victor Fontanos

A fine gentleman specializing in front-end and back-end development with extensive experience building high performance web applications that keeps users engaged and help businesses grow.


Hire Me
